Maximum DC Input Power

5500W

Maximum DC Input Voltage

850VDC

Maximum DC Input Current

15A

MPPT Tracking Number/
Each Input String Number

1

MPPT Tracking Voltage Range

200-820VDC

Power Off/On Voltage

200/300VDC

AC Output

Rated Power

5000W

Voltage Range

Single Phase AC 400V(360-440V)
Adjustable according to different countries and regions requirement.

Rated Voltage Range

400VAC

Frequency

50Hz / 60Hz

Phase number

Three Phase

Power Factor

0.99

Max Output Current

7.5A

Current THD

At Rated Power And In The Sine Wave<3.5%

Max Efficiency

98%

Europe Efficiency

97%

MPPT Efficiency

99.5%

Structure

Protection Degree

IP65

Cooling Method

Intelligent Air Cooling

Noise

<50dB

Data Interfaces

RS 485/ RS 232/ (Standard), WiFi Modular(Optional)

Isolation type

Non-isolated

Standby Power Consumption

0W

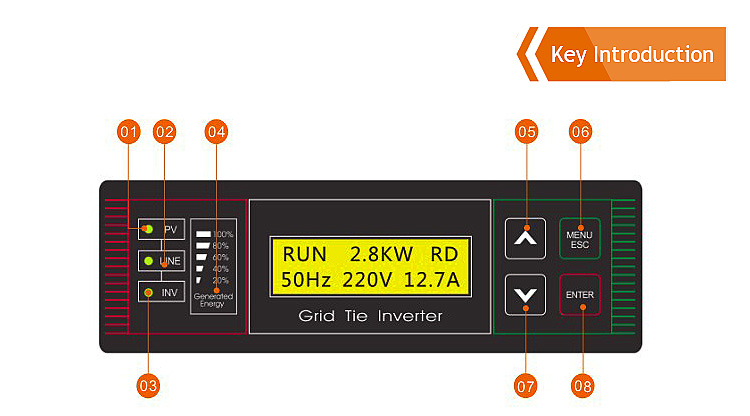

LCD Display

LCD

DC Switch

Integration

Protection

Support

DC Input Switch, Anti-island, Output Over-current, Input Reverse Connection,
DC/AC Surge Protection, Insulation Resistance Testing, RCD Testing, Upgrade WIFI

RCD Testing

Support

Protection (Inverter)

Input Overvoltage, Output Short Circuit, Overload, Overheat

Protection (Grid)

Anti-islanding(IEEE1547), over/under voltage of grid, over/under frequency of grid.

General Parameters

Input Terminal

MC4

Output Terminal

Connect Terminals

Topology

No Transformer

Warranty

5 Years Warranty, Can Be Extended to 10 years

State Grid Function

Yes

AC Switch

Integration

Operation temperature Range

Air Flow, -20 ℃ ~50 ℃ ( 45 ℃ )

Storage temperature

-25 ℃ ~ 60 ℃

Relative humidity

0~100%

Environment

No Corrosion Gas, Flammable Gas, Gas Fumes and Dust Etc

Altitude

6600 Feet 2000m, Max. 3000m

Size

440x560x260mm

Weight

27kgs
